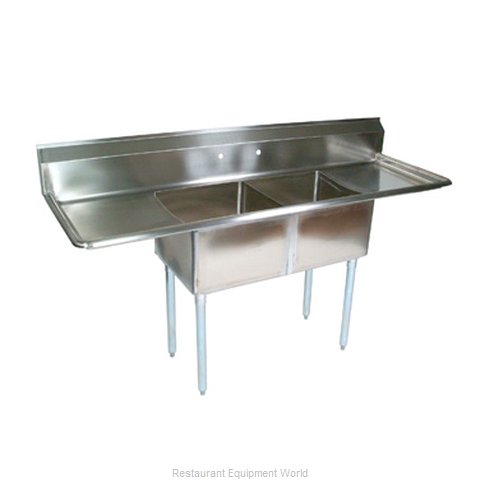

E-Series fregadero, 2-compartimiento(s), 172.72cmde ancho x 64.77cmde profundidad x 111.125cmde altura en total (de) tamaño, (2) 40.64cmde ancho x 50.8cm de adelante hacia atrás x 30.48cm de profundidad de los compartimientos, (2) 45.72cm izquierda & derecha escurridores, 24.765cmde altura peto posterior encajonado 45° superficie y 5.08cm peto, (1) juego de grifo para montar en la pared agujeros con 20.32cm centros, 8.89cm acuñado drenaje aberturas, 18/300 hecho de acero inoxidable, patas galvanizadas & escudetes, pies de plástico ajustables en forma de bala, NSF, CSA-condiciones de salubridad
| Fabricante | John Boos |
| Modelo # | JOH-E2S8-1620-12T18 |
| Empacado | Each |
| COMPARTMENT (FRONT - BACK) | 20" |
| BASE FINISH | Galvanized |
| SPLASH HEIGHT | 10" |
| BASE TYPE | Legs |
| SINK DEPTH (RIM - DRAIN) | 12" |
| GAUGE | 18 Ga |
| DRAINBOARDS | With Left & Right-hand Drainboards |
| COMPARTMENT WIDTH (SIDE - SIDE) | 16" |
E-Series Sink, 2-compartment, 68"W x 25-1/2"D x 43-3/4"H overall size, (2) 16"W x 20" front-to-back x 12" deep compartments, (2) 18" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
E-Series Sink, 2-compartment, 72"W x 23-1/2"D x 43-3/4"H overall size, (2) 18"W x 18" front-to-back x 12" deep compartments, (2) 18" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
E-Series Sink, 2-compartment, 72"W x 23-1/2"D x 43-3/4"H overall size, (2) 18"W x 18" front-to-back x 12" deep compartments, (2) 18" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
E-Series Sink, 2-compartment, 52-1/2"W x 25-1/2"D x 43-3/4"H overall size, (2) 16"W x 20" front-to-back x 12" deep compartments, (1) 18" left drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
