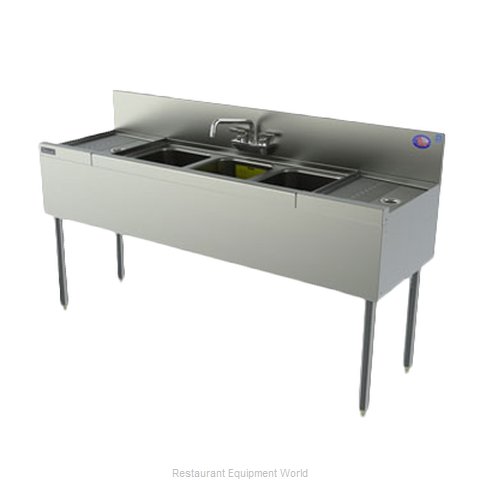

TSD Series para bar fregadero, tres compartimientos, 91.44cmde ancho x 60.96cmD, 15.24cmde altura del peto posterior, 25.4cm de ancho x 35.56cm de adelante hacia atrás x 23.495cm de profundidad de los compartimientos, 10.16cm OC grifo para montar en la superficie agujeros, 13.97cm plataforma posterior, faldón en la parte delantera & lados, sonido-amortiguado por debajo, incluye 3.81cm desagües & 21.59cm removible derrame standpipes, hecho de acero inoxidable, patas de acero inoxidable con pies termoplásticos ajustables, NSF
| Fabricante | Perlick |
| Modelo # | PER-TSD33C |
| Empacado | Each |
| FINISH | Stainless Steel Top, Front, Ends And Legs |
| SPLASH | 6" |
| SINK COMPARTMENTS | 3 |
| COMPONENTS L TO R | 3 Sink Comp'ts |
| BOWL SIZE | 10" X 14" X 10" |
| WIDTH (SIDE - SIDE) | 36" |
| DEPTH (FRONT - BACK) | 24" |
TSD Series Underbar Sink Unit, four compartment, 84"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 18" drainboards on left & right, 6"H backsplash, 4" O.C. deck mount faucet holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
Tobin Ellis Signature Underbar Prep Sink, with glass rinser, 12"W, freestanding, 6"H backsplash with 1" return, 9-1/2" wide x 16-5/16" side-to-side x 7-3/16" deep sink bowl with 1-1/2" drain, sound-deadened underside, integrated drip pan with 4-3/8" dia. stainless steel glass rinser (NSF) & "water fall" drainage into sink, includes removable perforated glass rack, recessed cubby on front with wire bottle holder, stainless steel construction, stainless steel legs with adjustable thermoplastic feet
TS Series Underbar Sink Unit, three compartment, 72"W x 18-9/16"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 18" drainboards on left & right, 6"H backsplash, 4" O.C. splash mount faucet holes, stainless steel apron on front & sides, sound-deadened underside, 3/8" copper supply tubes, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
TSD Series Extra Capacity Underbar Sink Unit, three compartment, 54"W x 24"D x 36-1/2"H, 20 gauge stainless steel construction, 16" wide x 16-1/4" front-to-back x 15" deep compartments, 6"H backsplash, (2) sets of 4" O.C. deck mount faucets holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF (order 6" deck swing faucet separately)
