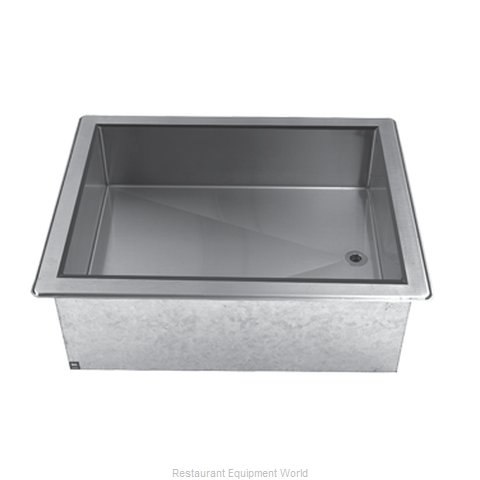

Cold Food Well Unit, drop-in, ice cooled, 34-1/8"W x 26-3/4"D x 10"H (overall), 32-5/8"W x 23-3/8"D (cutout size), 9" deep well with 1" drain, accommodates (2) 12" x 20" pans inserts up to 6-1/4" deep (with additional space below for ice), insulated, 18/304 stainless steel self rimmed top, black polyethylene thermal breaker, 20/300 series stainless steel bin, 20 gauge galvanized steel exterior, NSF
Manufacturer | Advance Tabco |
Model Number | ADV-DICP-2 |
Packed By | Each |
FINISH | Stainless Steel Top & Inner Liner, Galvanized |
LAYOUT | Straight |
PAN QUANTITY | 2-pan |
WIDTH (SIDE - SIDE) | 31 - 36 Inches |
INSULATION | Insulated |
Cold Food Well Unit, drop-in, ice cooled, 18-13/16"W x 26-3/4"D x 10"H (overall), 17-1/4"W x 23-3/8"D (cutout size), 9" deep well with 1" drain, accommodates (1) 12" x 20" pan inserts up to 6-1/4" deep (with additional space below for ice), insulated, 18/304 stainless steel self rimmed top, black polyethylene thermal breaker, 20/300 series stainless steel bin, 20 gauge galvanized steel exterior, NSF
Refrigerated Cold Pan, Drop-in, 25.5" x 72.625" cut out, holds (5) 12" x 20" pans (accommodates pan inserts up to 6-1/4" deep, with additional space below for cold air circulation), stainless steel top, fully self contained condensing unit (22.625" x 22.625" x 13.21"), digital programmable thermostat, aluminum encased copper tube evaporator panels, expansion valve, R404-A, ETLus
Refrigerated Cold Pan, Drop-in, 25.5" x 45.625" cut out, holds (3) 12" x 20" pans (accommodates pan inserts up to 6-1/4" deep, with additional space below for cold air circulation), stainless steel top, fully self contained condensing unit (22.625" x 22.625" x 13.21"), digital programmable thermostat, aluminum encased copper tube evaporator panels, expansion valve, R404-A, ETLus
Slim Series Cold Food Well Unit, drop-in, (3) refrigerated wells (accommodates pan inserts up to 6-1/4" deep, with additional space below for cold air circulation), 71-1/4"W x 18-5/8"D x 24-1/8"H (overall), 70"W x 17-3/8"D (cut out size), digital programmable thermostat, stainless steel top with extruded black polyethylene thermal breaker marine edge, stainless steel inner lining with 3" recessed top, galvanized steel outer lining, self-contained refrigeration, R404-A, 1" I.P.S. drain, ETLus
