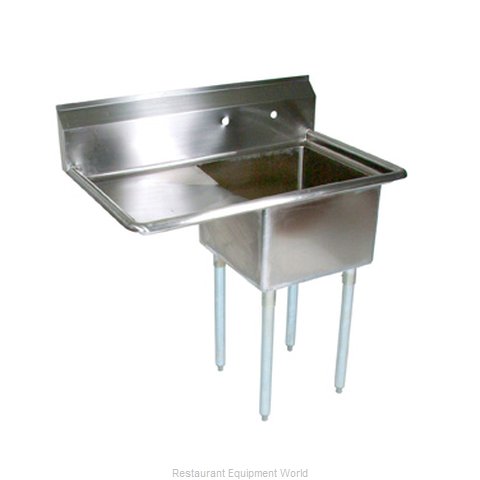

E-Series Sink, 1-compartment, 50-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 24"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
| Manufacturer | John Boos |
| Model Number | JOH-E1S8-24-14L24 |
| Packed By | Each |
| COMPARTMENT (FRONT - BACK) | 24" |
| SINK DEPTH (RIM - DRAIN) | 14" |
| GAUGE | 18 Ga |
| DRAINBOARDS | With Left-hand Drainboard |
| COMPARTMENT WIDTH (SIDE - SIDE) | 24" |
| BASE TYPE | Legs |
| SPLASH HEIGHT | 10" |
| BASE FINISH | Galvanized |
E-Series Sink, 1-compartment, 50-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 24"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
E-Series Sink, 1-compartment, 44-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 18"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
E-Series Sink, 1-compartment, 44-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 18"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
E-Series Sink, 1-compartment, 32-1/2"W x 20-1/2"D x 43-3/4"H overall size, (1) 15"W x 15" front-to-back x 14" deep compartment, (1) 15" left drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
