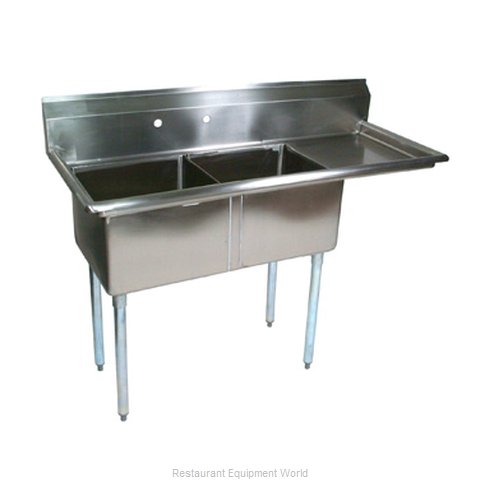

E-Series Sink, 2-compartment, 52-1/2"W x 25-1/2"D x 43-3/4"H overall size, (2) 16"W x 20" front-to-back x 12" deep compartments, (1) 18" right drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
| Manufacturer | John Boos |
| Model Number | JOH-E2S8-1620-12R18-X |
| Packed By | Each |
| GAUGE | 18 Ga |
| BASE TYPE | Legs |
| BASE FINISH | Galvanized |
| COMPARTMENT WIDTH (SIDE - SIDE) | 16" |
| SPLASH HEIGHT | 10" |
| DRAINBOARDS | With Right-hand Drainboard |
| COMPARTMENT (FRONT - BACK) | 20" |
| SINK DEPTH (RIM - DRAIN) | 12" |
E-Series Sink, 2-compartment, 52-1/2"W x 25-1/2"D x 43-3/4"H overall size, (2) 16"W x 20" front-to-back x 12" deep compartments, (1) 18" right drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
E-Series Sink, 2-compartment, 56-1/2"W x 23-1/2"D x 43-3/4"H overall size, (2) 18"W x 18" front-to-back x 12" deep compartments, (1) 18" right drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
E-Series Sink, 2-compartment, 56-1/2"W x 23-1/2"D x 43-3/4"H overall size, (2) 18"W x 18" front-to-back x 12" deep compartments, (1) 18" right drainboard, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
E-Series Sink, 2-compartment, 68"W x 25-1/2"D x 43-3/4"H overall size, (2) 16"W x 20" front-to-back x 12" deep compartments, (2) 18" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel construction, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
