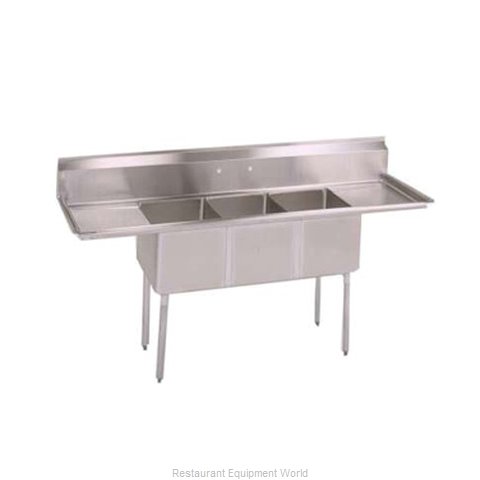

E-Series Sink, 3-compartment, 102"W x 23-1/2"D x 43-3/4"H overall size, (3) 18"W x 18" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
| Manufacturer | John Boos |
| Model Number | JOH-E3S8-18-14T24-X |
| Packed By | Each |
| SINK DEPTH (RIM - DRAIN) | 14" |
| DRAINBOARDS | With Left & Right-hand Drainboards |
| SPLASH HEIGHT | 10" |
| BASE FINISH | Galvanized |
| GAUGE | 18 Ga |
| COMPARTMENT WIDTH (SIDE - SIDE) | 18" |
| BASE TYPE | Legs |
| COMPARTMENT (FRONT - BACK) | 18" |
E-Series Sink, 3-compartment,120"W x 29-1/2"D x 43-3/4"H overall size, (3) 24"W x 24" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
E-Series Sink, 3-compartment,120"W x 29-1/2"D x 43-3/4"H overall size, (3) 24"W x 24" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
E-Series Sink, 3-compartment, 102"W x 23-1/2"D x 43-3/4"H overall size, (3) 18"W x 18" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
E-Series Sink, 3-compartment, 102"W x 29-1/2"D x 43-3/4"H overall size, (3) 18"W x 24" front-to-back x 14" deep compartments, (2) 24" left & right drainboards, 9-3/4"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" diameter die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
