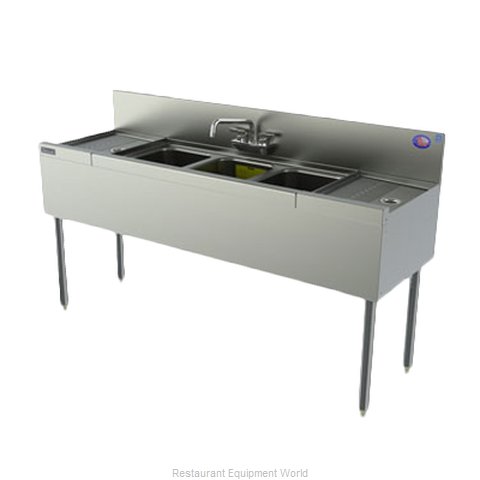

TS Series Underbar Sink Unit, three compartment, 36"W x 18-9/16"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 6"H backsplash, 4" O.C. splash mount faucet holes, stainless steel apron on front & sides, sound-deadened underside, 3/8" copper supply tubes, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
| Manufacturer | Perlick |
| Model Number | PER-TS33C |
| Packed By | Each |
| SPLASH | 6" |
| DEPTH (FRONT - BACK) | 18" |
| FINISH | Stainless Steel Top, Front, Ends And Legs |
| COMPONENTS L TO R | 3 Sink Comp'ts |
| BOWL SIZE | 10" X 14" X 10" |
| WIDTH (SIDE - SIDE) | 36" |
| SINK COMPARTMENTS | 3 |
TS Series Underbar Sink Unit, three compartment, 84"W x 18-9/16"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 24" drainboards on left & right, 6"H backsplash, 4" O.C. splash mount faucet holes, stainless steel apron on front & sides, sound-deadened underside, 3/8" copper supply tubes, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
TSD Series Underbar Sink Unit, two compartment, 24"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 6"H backsplash, 4" O.C. deck mount faucets holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
TSD Series Underbar Sink Unit, three compartment, 60"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 12" drainboards on left & right, 6"H backsplash, 4" O.C. deck mount faucet holes, stainless steel apron on front & sides, 5-1/2" rear deck, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
TSD Series Underbar Sink Unit, four compartment, 84"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 18" drainboards on left & right, 6"H backsplash, 4" O.C. deck mount faucet holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
