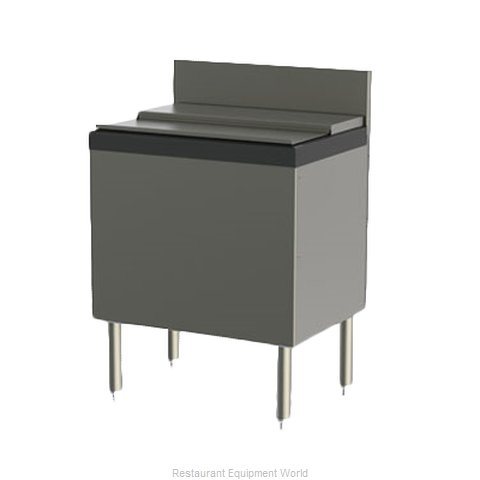

TSD Series Extra Capacity Underbar Ice Bin/Cocktail Unit, modular with cold plate, 30"W x 24"D, approximately 95-lb. ice capacity, 10-circuit aluminum cold plate concealed under bin liner, 6"H backsplash with 1" return at top, ABS plastic top ledge, 15" deep stainless steel ice bin, stainless steel front & sides, galvanized steel back & bottom, 1/2" NPS male drain, 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet
| Manufacturer | Perlick |
| Model Number | PER-TSD30IC-EC10 |
| Packed By | Each |
| FINISH | Stainless Steel Top, Front, Ends And Legs |
| WIDTH (SIDE - SIDE) | 30" |
| ICE BIN TYPE | 10-circuit Coldplate |
| ICE CAPACITY | 95 Lb |
| CHEST INTERIOR DEPTH | 15" Deep Chest |
| DEPTH (FRONT - BACK) | 24" |
| SPLASH | 6" |
TSD Series Extra Capacity Underbar Ice Bin/Cocktail Unit, modular, 30"W x 24"D, approximately 95-lb. ice capacity, 6"H backsplash with 1" return at top, ABS plastic top ledge, 15" deep stainless steel ice bin, stainless steel front & sides, galvanized steel back & bottom, 1/2" NPS male drain, 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet
TS Series Underbar Ice Bin/Cocktail Unit, modular, 30"W x 24"D, approximately 70-lb. ice capacity, 6"H backsplash with 1" return at top & rear deck, ABS plastic top ledge, 10-3/4" deep stainless steel ice bin, stainless steel front & sides, galvanized steel back & bottom, 1/2" NPS male drain, 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet, NSF
TSD Series Extra Capacity Underbar Ice Bin/Cocktail Unit, modular with cold plate, 24"W x 24"D, approximately 75-lb. ice capacity, 10-circuit aluminum cold plate concealed under bin liner, 6"H backsplash with 1" return at top, ABS plastic top ledge, 15" deep stainless steel ice bin, stainless steel front & sides, galvanized steel back & bottom, 1/2" NPS male drain, 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet
TS Series Extra Capacity Underbar Ice Bin/Cocktail Unit, modular with cold plate, 24"W x 18-9/16"D, approximately 75-lb. ice capacity, 10-circuit aluminum cold plate concealed under bin liner, 6"H backsplash with 1" return at top, ABS plastic top ledge, 15" deep stainless steel ice bin, stainless steel front & sides, galvanized steel back & bottom, 1/2" NPS male drain, 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet
